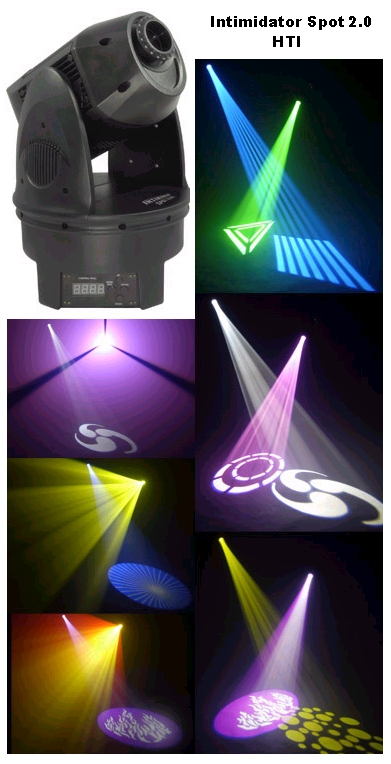

CHAUVET - DMX-690 - Intimidator Spot 2.0 - HTI
CONTROL FEATURES
6 to 8-channel DMX-512 moving yoke
Pan: 540° / tilt: 270°
Variable strobe/shutter
Color wheel 7 colors + white Rainbow color spin effect
Rotating Gobo wheel: 7 interchangeable, rotating gobos + open 5
metal, 2 dichroic gobos Gobo wheel spin effect
Variable motorized dimmer (0 – 100%)
ADDITIONAL FEATURES
Round base design for flush mounting
User-selectable pan/tilt ranges Pan: 540°, 360°, 180° Tilt: 270°,
180°, 90°
Built-in automatic programs via master/slave
Built-in sound activated programs via master/slave
User-selectable 16bit or 8bit pan/tilt resolution
Compact and lightweight
Electronic transformer
LED display menu with invert
Display auto on/off
Pan/tilt invert option
Thermal switch
Fan cooled
OPTIONAL CONTROLLERS
Easy Controller (CA-9)
SPECIFICATIONS
Beam angle: 13°
Footcandles: 1,246
Lux: 13,407
Light source: HTI 150 150W 6500°K 750hrs
Current draw: (peak 312W @ 120V) (inrush 384W @ 120V)
Power: Switchable 110V/230V 50/60Hz
Weight: 22lbs (10kgs)
Size: 12in x 12in x 20in - 305mm x 305mm x 508mm
2-year Limited Warranty
