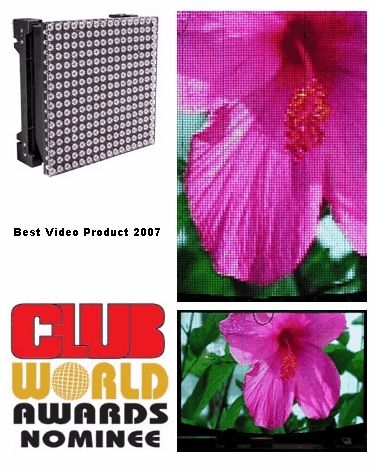

NAME : DVmodule^TMHR (4 Modules 50cm X 50cm in Flight Case)

Model : DVW-256 / DVM-HR

LED/panel: 2304 (768 red, 768 green, 768 blue) grouped in 256 clusters of 9

Rated power/cluster: 0.72W

Rated power/panel: 184.32W

Pixel/panel: 256

Pixel pitch: 31mm

Pixel density: 1024

16 million colors (24bit)

Refresh rate: 12MHz, 8MHz, 6MHz (adjustable)

Sweeping frequency: >90MHz

Video/flash/text/RGB color mixing and any PC based graphics

Durable and weather resistant IP-65 rated

Operating temperature: -10�C to 40�C

Operating humidity: Hd 85%

Viewing angle: 120�

Mounting system has rigging points and flexible configurations
Each panel includes 2ft VGA-style linking cable, 2ft Neutrik PowerCon�
linking cable and a 5ft power cable

Accepts multiple formats: DVI, VGA, RF, YC, YCbCr, SCART, and HDM

Video and Neutrik PowerCon� output for daisy chaining units together

Works with other manufacturers� software (must have DVI to DVW card installed)

Direct air convection cooled

Low power consumption

REQUIREMENTS FOR OPERATION

DV Wall Driver (1 per every 16 panels high and 6 panels wide)

DV Wall Studio software and/or ShowXpress Timeline (with DV Wall Studio�s
DVI to DVW card installed)

Windows XP computer with an available PCI slot

ATI graphics card

Average LED lifespan: 50,000 - 100,000hrs

Current draw: (peak 178W @ 110V) (inrush 0W @ 120V)

Power: 110V or 230V

Weight: 28lbs (12.7kgs) with mounting hardware

Size: 19.8in x 19.8in x 4in (per panel) - 501mm x 501mm x 101mm (per panel)
1-year limited warranty

NAME: DVwall^TM Driver

MODEL: DVW-DRIVER

DRIVER FEATURES

16 separate outputs (16 rows high by 6 panels wide), 96 panels total

Input by RJ45 crossover networking cable

Adjustable video output via internally mounted dip switches

Requires DVwall Studio computer software

Linkable with other DVW-DRIVER units with CAT5 networking cable

16 million colors (24bit)

Plug signal directly into rear for use without LEDstudio software

DRIVER SPECIFICATIONS

Current draw: peak 24W @ 110V

Power: 110V 60Hz or 230V 50Hz

Weight: 11lbs (4.7kgs)

Size: 19.5in x 9.5in x 3.75in - 495mm x 241mm x 95mm

1-year limited warranty

NAME: DVwall^TM Studio

MODEL: DVW-STUDIO

INCLUDES

1pc LEDstudio Software license
    - DVI signal cable
    - Network cable,
    - RS232 signal cable

1pc DVI to DVW PCI card

LEDstudio SOFTWARE FEATURES

PC-based software for the Windows operating system

Controls up to 48 modules x 32 modules

Text generator with effects

Show editor and multiple playback options

Imports most PC based files like music videos, complex graphics, word, excel, power point and DVDs from your computer

Maximum video wall resolution: 768 x 512

PCI FEATURES

Digital Video Interface (DVI) port

Auxiliary port

2 data outputs to separate into 1-256 and 257-512

Can be powered by an optional external 5V power supply for when card is operating external of the computer

Links to computer�s graphics card via DVI cable

SYSTEM REQUIREMENTS

Windows XP operating system

ATI graphics card

Supported monitor displays: 640 x 480, 800 x 600, 1024 x 768

PCI REQUIREMENTS

Intel Pentium (or equivalent) processor (500MHz or better) with 32MB RAM

256-color display

ATI graphics card (NVIDIA is not supported)

1 available PCI slot

MSRP: ~~$16799.99~~
